DB500® Mobile S

DB500 Blast Pot

60 minute
continuous blast time per fill

Lifetime Warranty
on blast pot

Made in the USA
in our one and only Houston facility

• 5 Cubic Foot Capacity
• Holds 200 lb of abrasive per fill
• Holds 20 gal of water per fill (when wet blasting)
• ~ 60 minute blast time per fill
• Dimensions: 54" H x 34" W x 40" D
• Operating Pressure: 30-150 PSI
• ASME / PED / CE Compliant
• Texas Edition: Internal parts manufactured of hardened steel
• Lifetime Warranty on Blast Pot

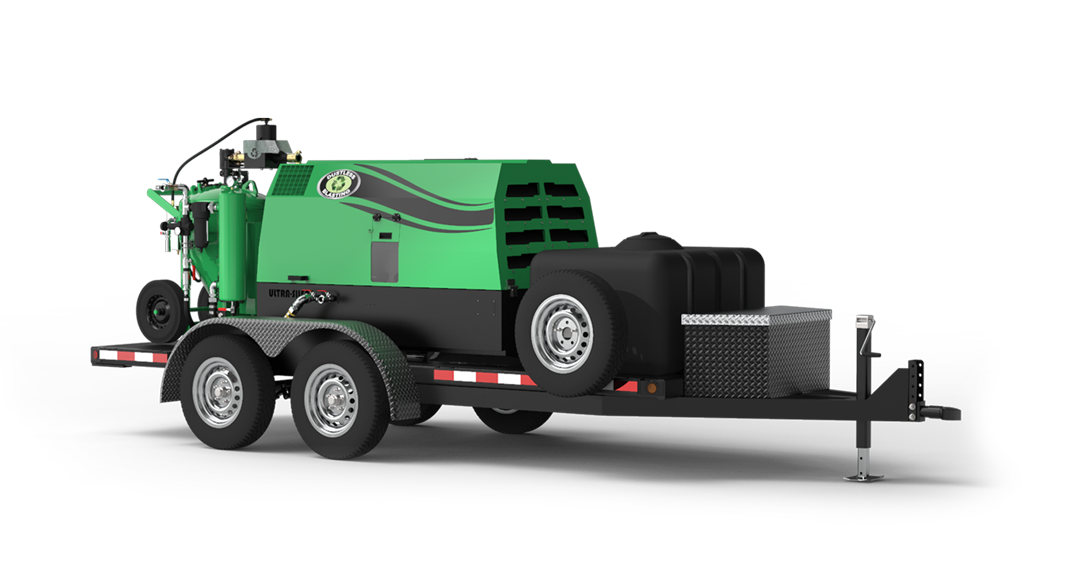

Our "S" Trailer

Ultra-Compact
Can be navigated through narrow streets, making it a favorite in urban areas.

Fits in a Standard Garage
No need to rent shop or storage space.

Low Profile Deck
Easy access to all your controls.

• Deck Dimensions: 14’ L x 5’ W
• Total Trailer Dimensions: 18’6” L x 6’6” W
• Total Assembly Height: 5’ (6'3" to top of pinch valve)
• Purpose Built Heavy Duty Trailer
• DOT Compliant LED Lights
• Two 6,000 lb Axles
• Dual Axle Electric Brakes

• Electric Breakaway System
• 8 Ply Tires + Full Size Spare
• 4,320 lb Dry Weight
• 5,500 lb Fully Loaded Weight (estimated)
• Generally requires 1/2-ton truck to tow. Please check your towing capacity.

185 CFM Rotair Compressor

The Power you Need
185 CFM air volume

Ultra-Silent Tier 4 Final
Smooth, quiet, and economical operation.

Extended Warranty
5 years on compressor.
3 years on engine.

• 185 CFM Air Delivery
• Powered by Kohler
• 49 Horsepower Engine
• 23 Gallon Diesel Tank
• Fuel Consumption: 1.5 gal/hr @ 60%
• Open-canopy design with spin-on oil and separator filters for ease of maintenance
• Ultra Silent Tier 4 FINAL
• Extended Warranty on Air Compressors (5 years on compressor, 3 years on engine)

Included Accessories

• 100 ft Blast Hose
• Electric Deadman for instant on and off
• Tungsten Carbide Nozzle (SLV #5)
• Fill Funnel with Screen
• 150 Gallon Water Tank
• 48 GPM Water Pump
• ADCS-350 Air Dryer / Cooler which allows for dry blasting and soda blasting, in addition to Dustless Blasting

Need additional accessories?
