DB500® Mobile S

Exceptional performance with an ultra-compact footprint.

Get a Quote

Own this equipment? Get support here

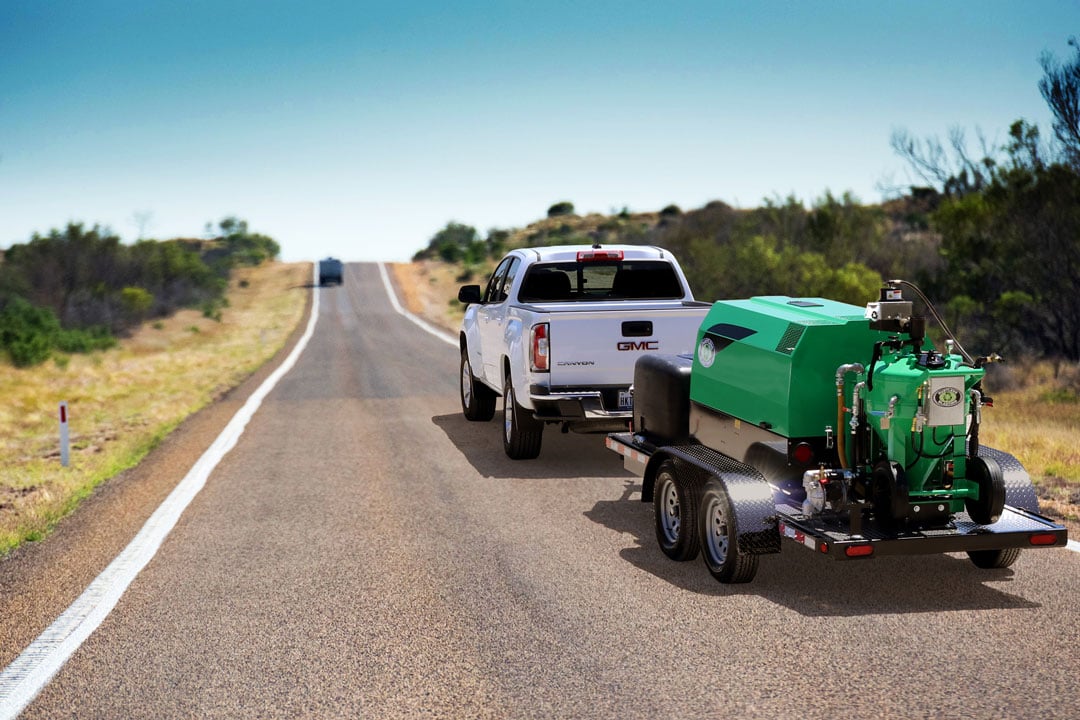

DB500 Mobile S blaster on trailer

What's Included:

DB500 Blast Pot

60 minute
continuous blast time per fill

Lifetime Warranty
on blast pot

Made in the USA
in our one and only Houston facility

  • 5 Cubic Foot Capacity
  • Holds 200 lb of abrasive per fill
  • Holds 20 gal of water per fill (when wet blasting)
  • ~ 60 minute blast time per fill
  • Dimensions: 54" H x 34" W x 40" D
  • Operating Pressure: 30-150 PSI
  • ASME / PED / CE Compliant
  • Texas Edition: Internal parts manufactured of hardened steel
  • Lifetime Warranty on Blast Pot
DB500 blast pot

Our "S" Trailer

Ultra-Compact
Can be navigated through narrow streets, making it a favorite in urban areas.

Fits in a Standard Garage
No need to rent shop or storage space.

Low Profile Deck
Easy access to all your controls.

  • Deck Dimensions: 14’ L x 5’ W
  • Total Trailer Dimensions: 18’6” L x 6’6” W
  • Total Assembly Height: 5’ (6'3" to top of pinch valve)
  • Purpose Built Heavy Duty Trailer
  • DOT Compliant LED Lights
  • Two 6,000 lb Axles
  • Dual Axle Electric Brakes
  • Electric Breakaway System
  • 8 Ply Tires + Full Size Spare
  • 4,320 lb Dry Weight
  • 5,500 lb Fully Loaded Weight (estimated)
  • Generally requires 1/2-ton truck to tow. Please check your towing capacity.

185 CFM Rotair Compressor

The Power you Need
185 CFM air volume

Ultra-Silent Tier 4 Final
Smooth, quiet, and economical operation.

Extended Warranty
5 years on compressor.
3 years on engine.

  • 185 CFM Air Delivery
  • Powered by Kohler
  • 49 Horsepower Engine
  • 23 Gallon Diesel Tank
  • Fuel Consumption: 1.5 gal/hr @ 60%
  • Open-canopy design with spin-on oil and separator filters for ease of maintenance
  • Ultra Silent Tier 4 FINAL
  • Extended Warranty on Air Compressors (5 years on compressor, 3 years on engine)
185CFM rotair air compressor

Included Accessories

  • 100 ft Blast Hose
  • Electric Deadman for instant on and off
  • Tungsten Carbide Nozzle (SLV #5)
  • Fill Funnel with Screen
  • 150 Gallon Water Tank
  • 48 GPM Water Pump
  • ADCS-350 Air Dryer / Cooler which allows for dry blasting and soda blasting, in addition to Dustless Blasting

Warranty

Spec Sheet

User Manual

Compressor User Manual

Get a Quote

DB500 Mobile S



home-banner-6

Our best-selling blast pot
Up to 60 minutes of blasting between refills and our worry-free lifetime warranty.

banner-graffiti-removal

All-inclusive
One comprehensive system for Dustless Blasting, dry blasting and soda blasting, and more with a ADCS-350 Air Dryer / Cooler.

Click and drag to rotate the 3D model.

You'll love it from every angle.
Click and drag to rotate the 3D model.

Rather see it in person? We're happy to offer hands-on demos in Houston, TX.

Experience the DB500 Mobile S
