DB500® Mobile S
DB500 Blast Pot
DB500® Blast Pot
60 minutes of continuous run time per fill.
Air Compressor
185 CFM compressor for reliable blasting.
Compact Trailer
S Series design fits into tight spaces with ease.
- 5 cubic foot capacity
- Holds 200 lb of abrasive per fill
- Holds 20 gal of water per fill (when wet blasting)
- ~ 60 minute blast time per fill
- Operating pressure: 30-150 PSI
- ASME / CRN / PED / CE compliant
- Blast pot lifetime warranty

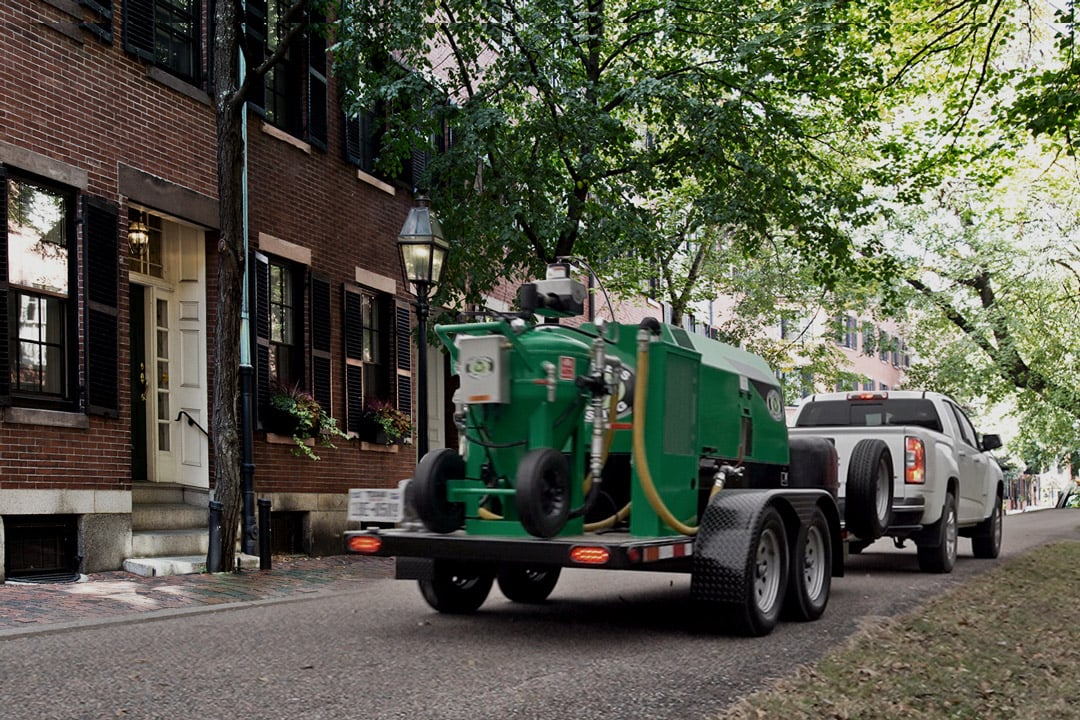

Our "S" Trailer
Compact
Can be towed by a 1/2-ton truck.
Fits in a Standard Garage
No need to rent shop or storage space.
Low Profile Deck
Easy access to all your controls.
- Deck dimensions: 14’ L x 5’ W
- Total trailer dimensions: 18’6” L x 6’6” W
- Total assembly height: 5’ (6'3" to top of pinch valve)
- DOT compliant LED lights
- Two 6,000 lb axles
- Dual axle electric brakes
- Electric breakaway system
- 8 ply tires + full size spare
- 4,320 lb dry weight
- 5,500 lb fully loaded weight (estimated)
- Generally requires 1/2-ton truck to tow. Please check your towing capacity.
Included Accessories
- 100 ft blast hose
- Electric deadman for instant on and off
- Tungsten carbide nozzle (SLV #5)
- Fill funnel with screen
- 150 gallon water tank
- 48 GPM water pump
- ADCS-350 air dryer/cooler which allows for dry blasting and soda blasting, in addition to Dustless Blasting
The Dustless Blasting system that I integrated into my business allowed for an easy and clean way to restore various items back to their original form. From pool decks to large machinery and trucks, I have done it all.”
